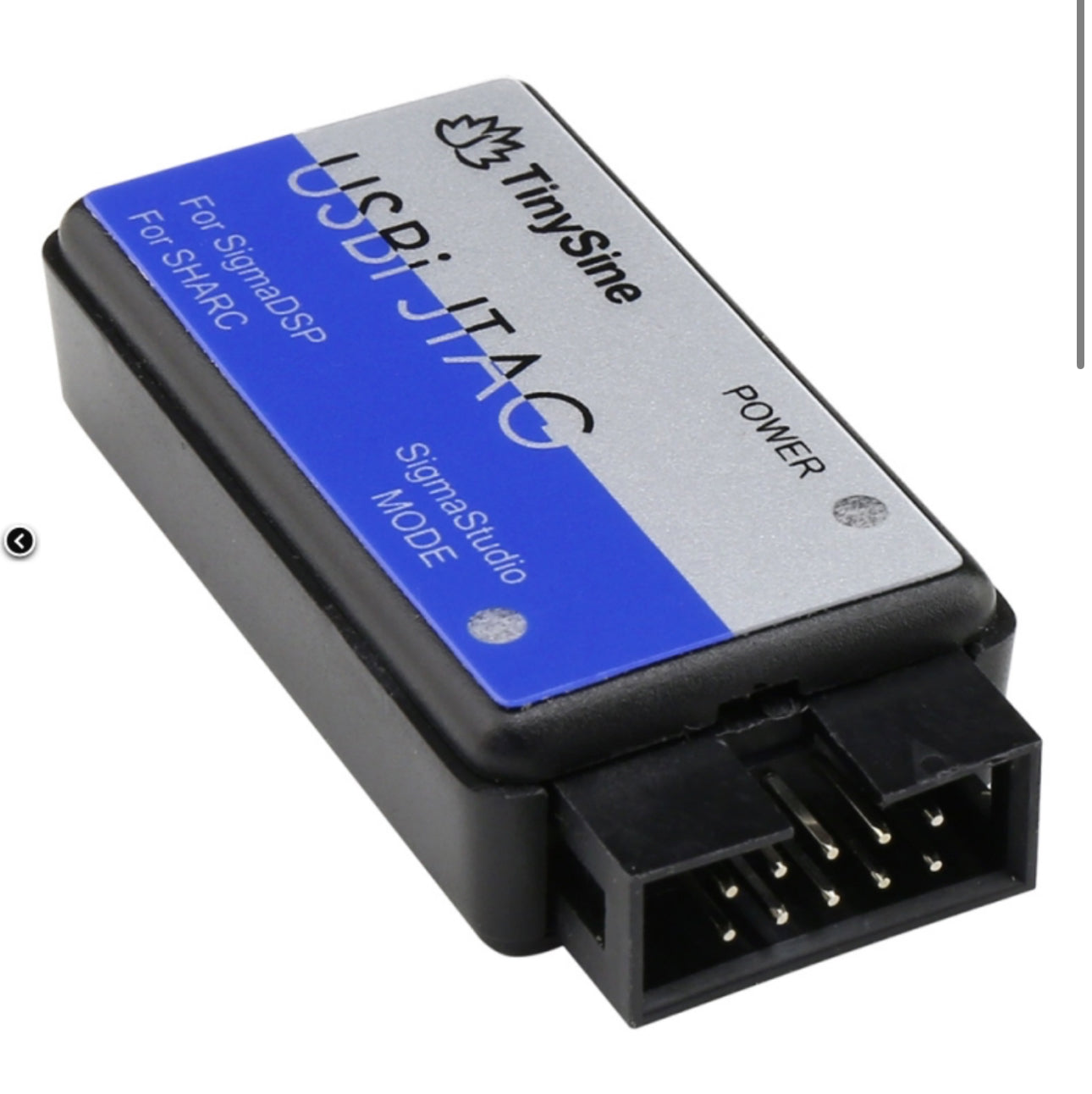

USBi JTAG Sigma DSP programmer

This USBi JTAG Sigma DSP programmer can be used to program SigmaDSP series digital signal processing chips. It can work with the ADI SigmaStudio software. The senior developer can use this programmer to develop their own firmware for the DSP board. You can use it to programming our TSA1701 DSP board or any other DSP board which uses SigmaDSP chip.

Support all SigmaDSP series DSP chips:

• ADAU17xx series(example: ADAU1701, ADAU1702, ADAU1761, ADAU1781, ADAU1772, ADAU1777 ect..),
• ADAU14xx series(example:ADAU1401, ADAU1461 ect..)
• ADAU144x series(example:ADAU1442, ADAU1445, ADAU1446 ect..)
• ADAU145x series(example:ADAU1450, ADAU1451, ADAU1452 ect..)
• ADAU146x series
• AD194x series(example:AD1940, AD1941 ect..)
• DAU series(example:SSM25xx, ADAU19xx, ADAU13xx, ADAV4xx, AD193x, AD195x ect..)

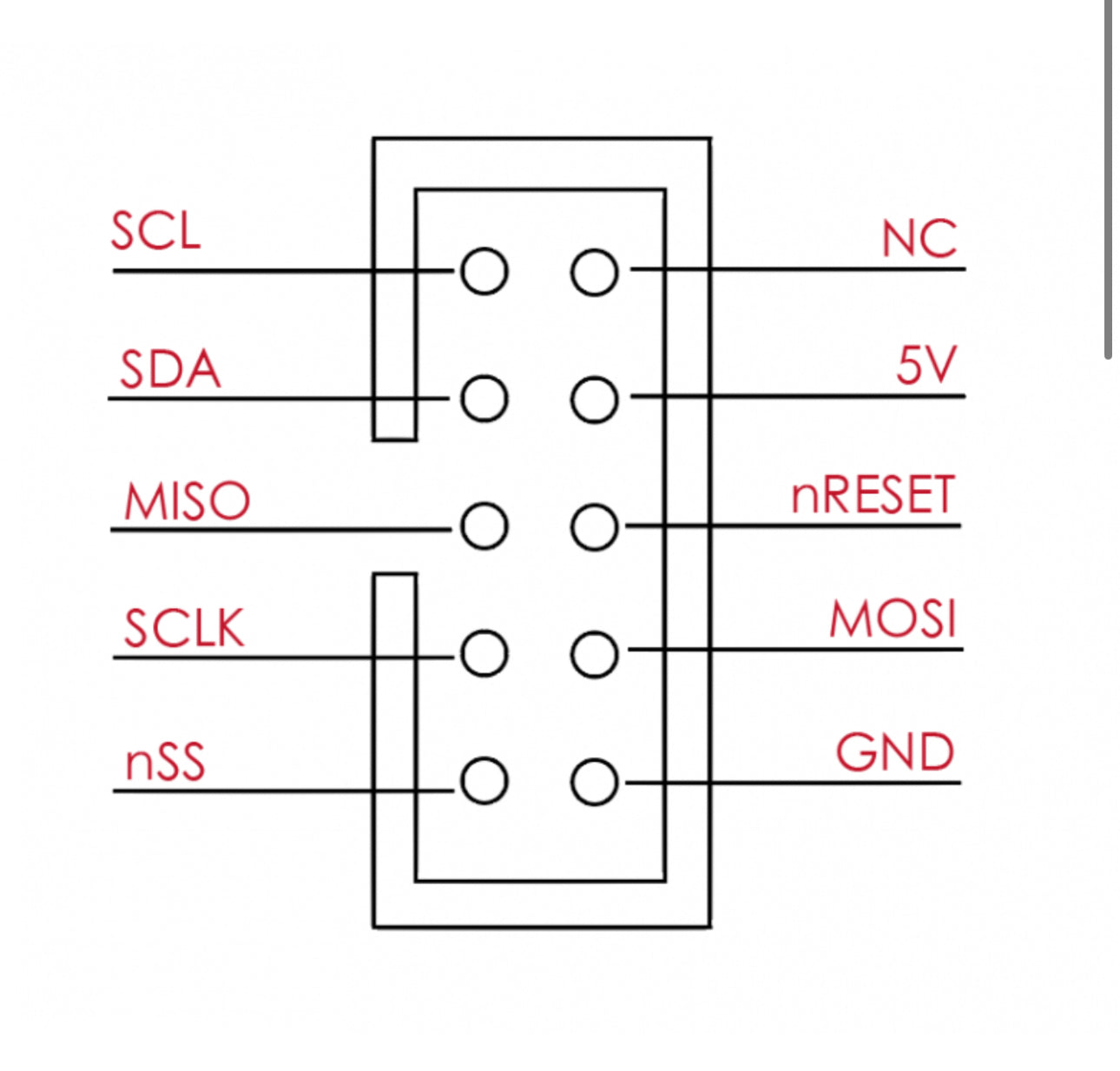

Features:

• 3.3V logic level
• USB to SPI/i2C
• 5V power output

Download:

https://www.analog.com/en/resources/evaluation-hardware-and-software/software/ss_sigst_02.html#software-overview
