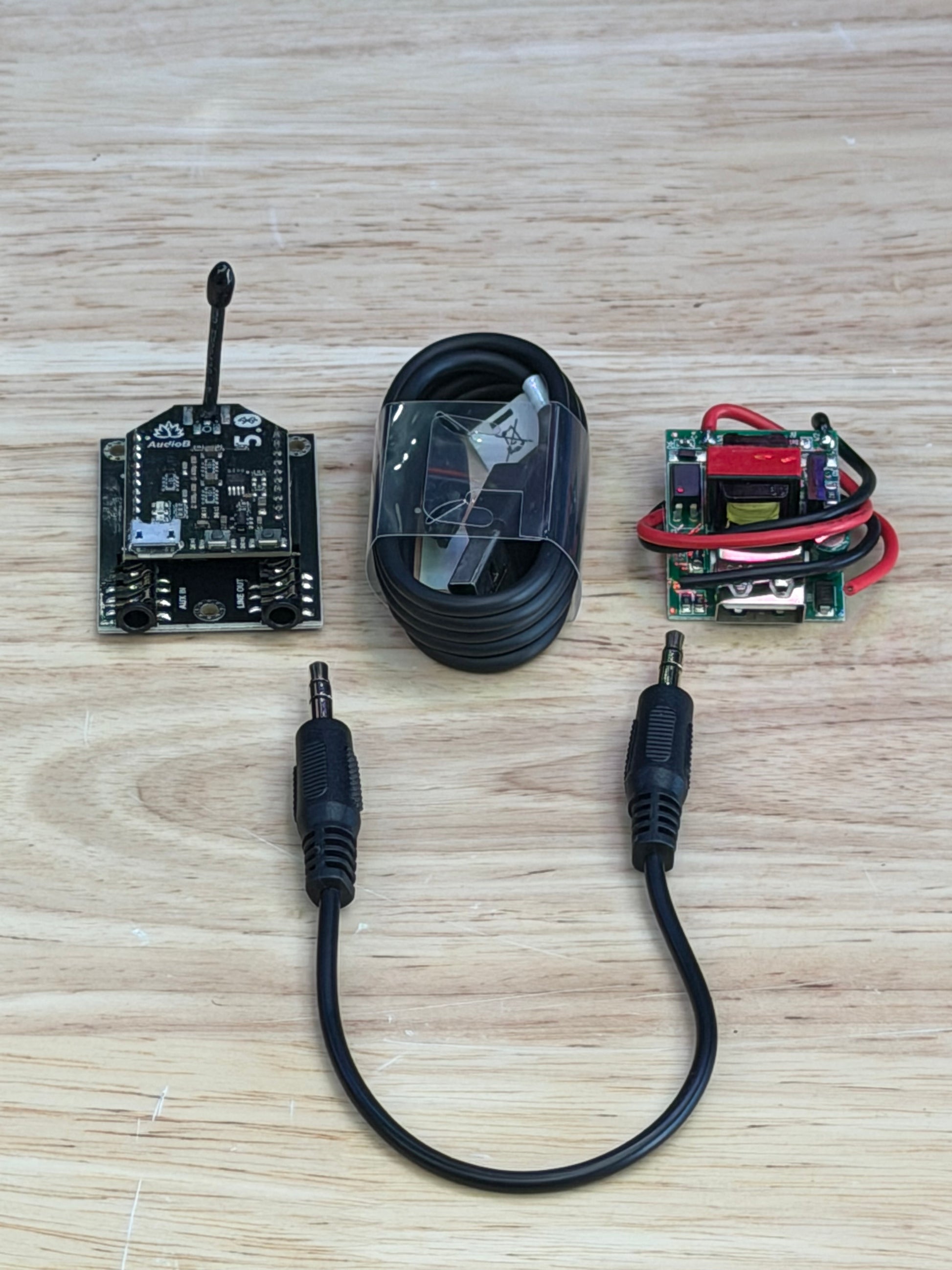

This bundle includes

TSA6179A , Isolated Power Supply, short AUX cable











https://www.tinyosshop.com/tsa6179a?filter_name=6179&filter_description=true&filter_sub_category=true



The TSA6179A is a high-performance Bluetooth 5.0 stereo audio receiver board based on the Qualcomm QCC3031 chipset. It’s designed to add reliable, long-range Bluetooth audio to amplifiers, home audio systems, and DIY speaker builds via Line-In or AUX input.



This board features a micro-USB port for firmware updates, allowing you to switch between TWS mode and Party (Multipoint) mode, depending on how you want your system to operate. Two onboard buttons (S1 & S2) can be configured to handle different functions based on the selected firmware.









Firmware Options (Selectable via Micro-USB)







🔹 TWS Mode (True Wireless Stereo)





• Operates as a standard Bluetooth stereo audio receiver
• Two TSA6179A boards can be paired together in TWS mode
• One module outputs Left channel, the other outputs Right channel by default
• Bluetooth settings can be changed to output L&R mixed mono on each module
• Ideal for dual-speaker or split-channel builds







🔹 Party Mode (Multipoint / Broadcast)





• Allows multiple TSA6179A modules to connect and play audio together
• Each module outputs stereo audio by default
• Makes it possible to build wireless multi-speaker or surround-style systems
• New modules can be added or removed without re-pairing everything











Basic Operation







TWS Mode – Single Module





1. Power on the module
2. After ~1 second, it enters pairing mode (Red & Blue LEDs flashing)
3. Connect to “TSA6179” from your Bluetooth device
4. Play audio







TWS Mode – Dual Module Setup



Master Module



• Long press S1 to set as TWS master





Slave Module



• Power on, long press S2 to set as TWS slave
• Modules auto-connect within ~30 seconds











Party Mode – Multipoint Setup





1. Power on the module
2. Double-click S1 to enter pairing mode
3. Connect to “TSA6179” from your Bluetooth device
4. Audio will play on the master module





Adding Slave Modules



• Click S2 on the slave to set receiver mode
• Double-click S2 on both master and slave to pair
• Additional modules can be added the same way











Key Features





• Bluetooth 5.0
• Qualcomm QCC3031 chipset
• TrueWireless Stereo (TWS) support
• Multipoint / Party mode
• Qualcomm cVc audio technology
• Stereo audio output
• Effective transmission distance: 50–100 meters
• Firmware upgradable via micro-USB
